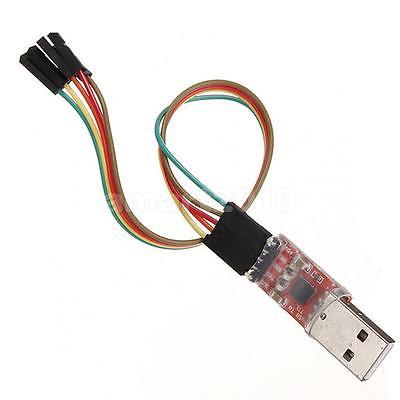

ماژول مبدل و پروگرامر USB to TTL با چیپ CP2102 آردینو دارای 5 پین همراه کابل

Features: Implements full v2.0 USB protocol
Needs no external crystal
Internal EEPROM for device ID and Product Description strings
+3.3V 100ma output
 5volt tolerant inputs
USB Specification 2.0 compliant; full-speed -12 Mbps
All handshaking and modem interface signals
Use this device to connect your PC to a serial (TTL level) device
Uses CP2102 chipset and has a standard 0.1″ pitch terminal strip to connect directly to UART or I/O pins for easy access to your MCU
USB specification 2.0 compliant with full-speed 12Mbps
Standard USB type A male and TTL 6pin connector

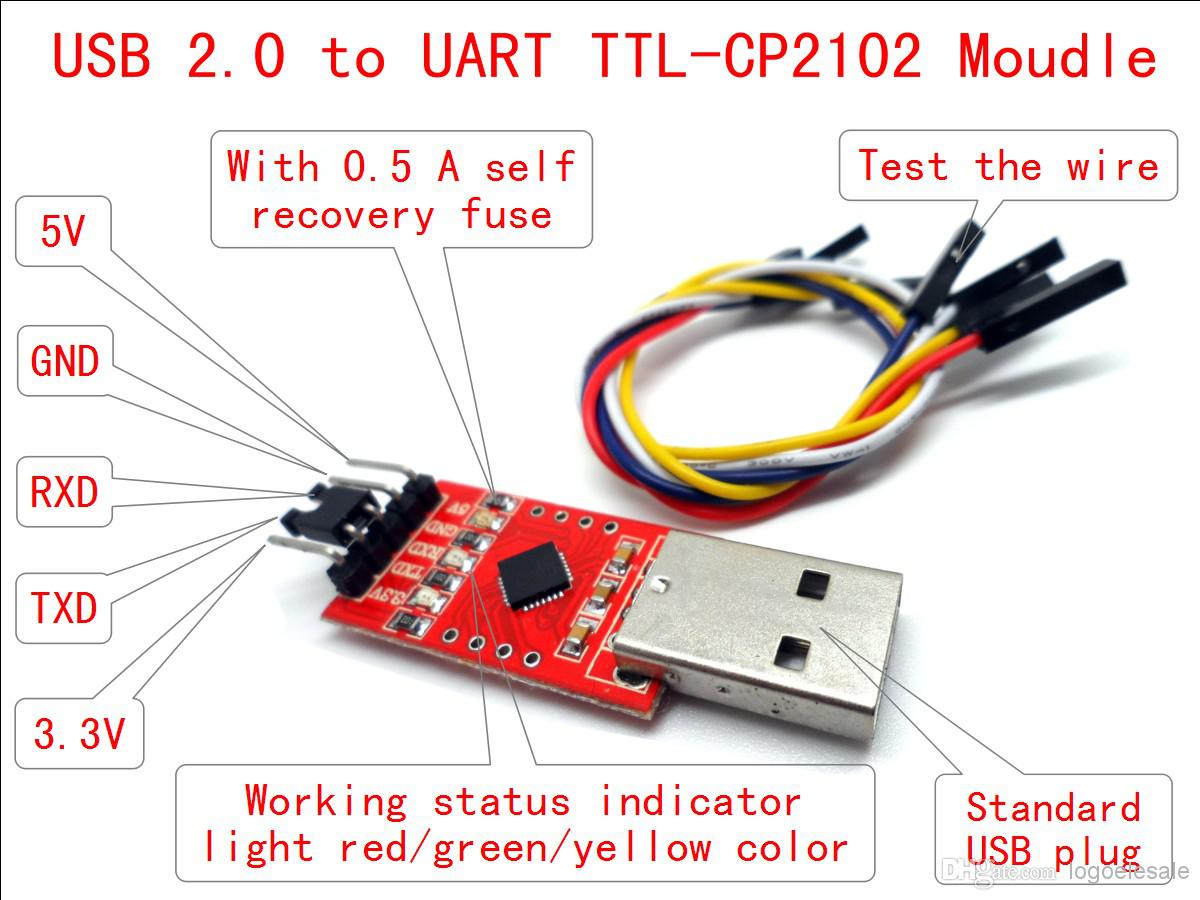

 5pins for 3.3V, TXD, RXD, GND & 5V
Baud rates: 300 bps to 1.5 Mbps
Byte receive buffer; 640 byte transmit buffer
Hardware or X-On/X-Off handshaking supported.
Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
Size: 42mm X 15mm (approx
Weight: 4g (approx

The USB side must be connected to PC or Mac. Other USB devices like a digital camera, scanner and printer is not allowed
